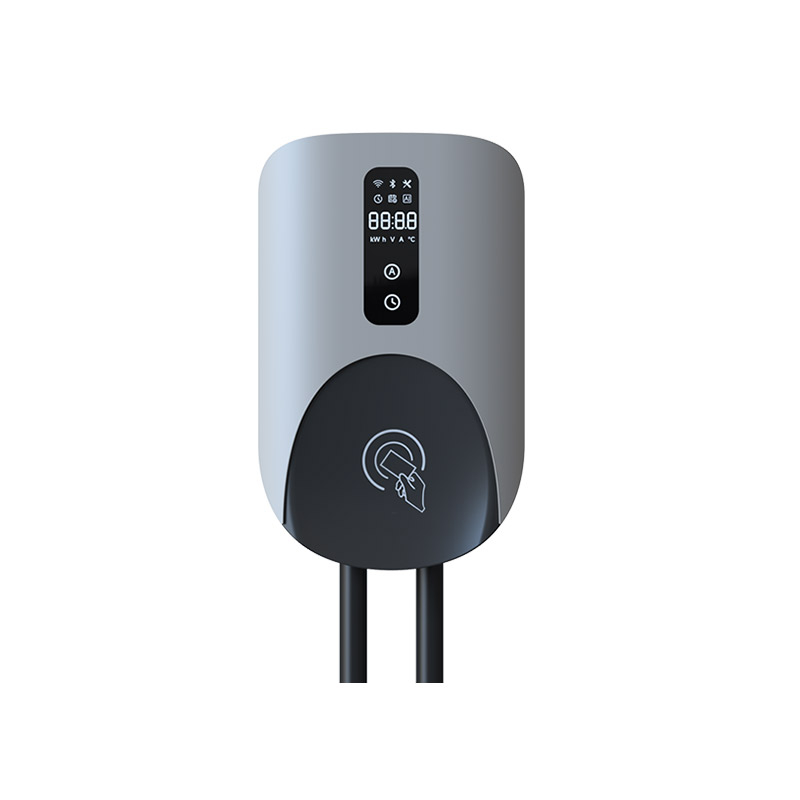

The Wall-Mounted AC EV Charger is a versatile and cost-effective charging solution designed for both residential and small-scale commercial use. Unlike high-power 22kW models, this charger offers adjustable output power (ranging from 7kW to 11kW) to match,single-phase 220V or 230V power grids, making it accessible for users without 3-phase electricity .
| Quantity: | |
|---|---|
Crafted with a compact ABS casing (dimensions approx. 350×215×110mm) and weighing only 7kg, it saves valuable space while maintaining robust performance. Equipped with a 4.3-inch color LCD display, it provides real-time data on charging status, power consumption, and error codes, ensuring user-friendly operation . Certified to IEC 61851 and CE standards, it meets global safety and performance requirements for reliable daily use.
Optimized for single-phase power supplies, it eliminates the need for costly 3-phase electrical upgrades—making EV charging accessible for urban apartments and older homes. The adjustable power output adapts to varying grid capacities, preventing overloads .
Boasting a charging efficiency of 95%, the charger minimizes energy waste, translating to lower electricity bills over time. Standby power consumption is below 2W, further reducing unnecessary energy usage .
The wall-mounted design supports quick installation on concrete, brick, or metal surfaces, with a detachable charging cable (3m or 5m options) for added convenience. Modular internal components simplify maintenance, reducing downtime and repair costs .
With IP54 protection against dust and water splashes, it’s suitable for covered outdoor areas like carports. Integrated safeguards include over-temperature, over-voltage, leakage, and short-circuit protection, ensuring safety for both the charger and EV battery .
Ideal for apartments, townhouses, and small garages where 3-phase power is unavailable. It integrates seamlessly into limited spaces, providing convenient overnight charging .
Perfect for cafes, small offices, and retail stores looking to offer charging amenities to customers. The adjustable power output accommodates multiple chargers without straining the grid .
Suitable for small EV fleets (e.g., delivery vans) and residential complexes with shared parking, offering a balance of performance and affordability .
Product Information
Charging mode | Smart charger |
Input/output power rating and current | 3.5KW/16A; 7kW/32A |
Input/output voltage | 200-240V, 50Hz/60Hz |
Network type | TT; TN |
Connector type | Type 1 plug, 23 feet(7m) |
Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
General Characteristics
IP and IK rating | IP65 |
Operating altitude | 6562 feet(2000m) |
Operating temperature range | -25℃ to +50℃ |
Storage temperature range | -30℃ to+70℃ |
Mounting | Wall or on a pedestal |
Dimensions(H×W×D) | 280×170×83mm |
User Interface
Staus indication | LCD(2 inch LCD) |
User interface | Easy Charge APP; Easy Charge Cloud |
Connectivity | Bluetooth, Wi-Fi, Ethernet, 4G(Optional), RS485 for energy meter connection |
Communicaton protocols | OCPP 1.6J |
User authentication | APP,RFID card |
Software Update | OTA updates via web portal |
Certification and Standards
Safety and compliance | CE、UL、CCC |
Warranty | 24 months, warranty extension possible |
At 7kW, it adds approximately 30km of range per hour; at 11kW, this increases to 45km per hour—ideal for overnight charging (8-10 hours) to fully replenish most EV batteries .
Yes, the IP54 protection rating allows use in covered outdoor areas like carports. For exposed locations, we recommend pairing it with a weatherproof cover to extend its lifespan .
Yes, with a Type 2 to Tesla adapter (sold separately), it works seamlessly with all Tesla models, as well as other EV brands using Type 1 or Type 2 ports .
With a design life of 100,000 hours and regular maintenance, the charger provides reliable service for 10-15 years—backed by a 2-year manufacturer warranty .
