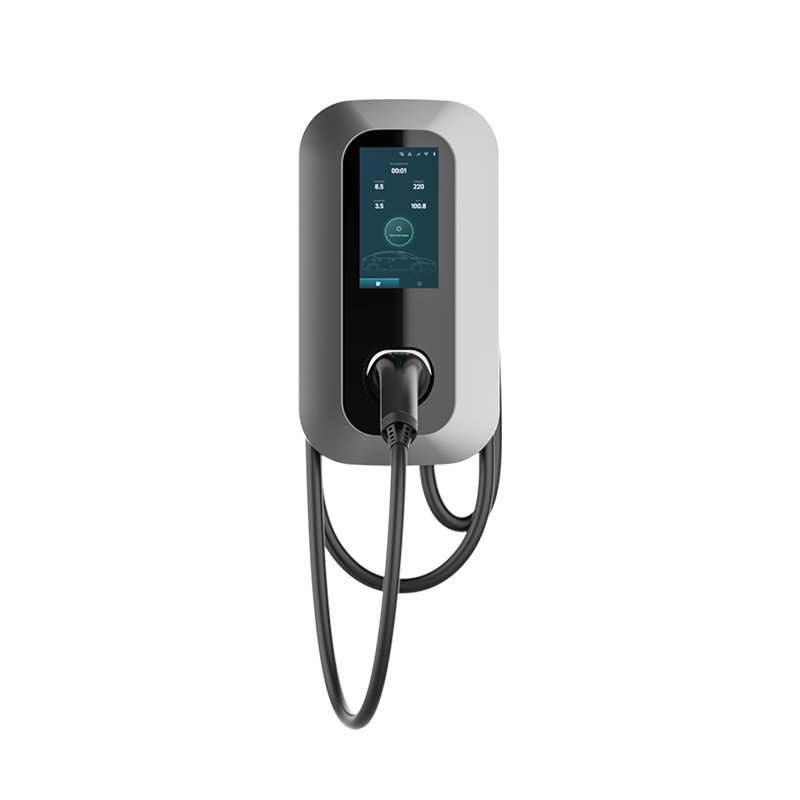

The 22kW Wall-mounted AC EV Charger is a high-performance residential and commercial charging solution engineered to meet the growing demand for efficient electric vehicle (EV) power supply. Operating on 3-phase 380V voltage with a rated current of 32A, this charger delivers a maximum output power of 22kW—enabling rapid replenishment of EV batteries compared to standard low-power alternatives .
| Quantity: | |
|---|---|
Encased in durable aluminum alloy with an IP65 waterproof and dustproof rating, it withstands extreme environmental conditions ranging from -40℃ to +65℃, ensuring reliable operation both indoors and outdoors . Equipped with a 4.3-inch color LCD display, it provides real-time monitoring of charging status, current, voltage, and temperature, while supporting global charging standards including SAE J1772, IEC 61851, and GBT 20234 for broad compatibility .
With a charging efficiency of over 95%, the charger minimizes energy loss during conversion, cutting charging time by up to 50% compared to 7kW models. A typical mid-sized EV with a 60kWh battery can be fully charged in approximately 2.7 hours—ideal for users with time-sensitive mobility needs .
Integrated with Type B RCD leakage protection (30mA AC), it offers multi-layer safeguards including over-voltage, under-voltage, over-temperature, overload, and lightning protection . The IK10 structural strength rating ensures resistance to physical impact, while compliance with CE and UKCA certifications validates adherence to international safety norms .
Support for RFID card authorization and mobile app control allows users to manage charging schedules remotely, optimizing energy usage during off-peak hours. The 5-meter detachable charging cable with Type 2 connector enhances installation flexibility, while standby power consumption below 3W reduces unnecessary energy waste .
Perfect for villas, townhouses, and large apartments with 3-phase power access, it transforms home garages into personal charging stations—eliminating reliance on public charging networks .
Suitable for small office buildings, hotel parking lots, and residential communities, it caters to multiple EV users with consistent performance and easy maintenance .
Product Information
Charging mode | Smart charger |
Input/output power rating and current | 22kW/32A |
Input/output voltage | 380-400V, 50Hz/60Hz |
Network type | TT; TN |
Connector type | Type 1 plug, 23 feet(7m) |
Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
General Characteristics
IP and IK rating | IP65 |
Operating altitude | 6562 feet(2000m) |
Operating temperature range | -25℃ to +50℃ |
Storage temperature range | -30℃ to +70℃ |
Mounting | Wall or on a pedestal |
Dimensions(H×W×D) | 405×220×95 mm |
User Interface
Staus indication | LCD/LED(Optional, 4 inch LCD |
User interface | Easy Charge APP; Easy Charge Cloud |
Connectivity | Bluetooth, Wi-Fi, Ethernet, 4G(Optional), RS485 for energy meter connection |
Communicaton protocols | OCPP 1.6J |
User authentication | APP, RFID card |
Software Update | OTA updates via web portal |
Certification and Standards
Safety and compliance | CE、UL、CCC |
Warranty | 24 months, warranty extension possible |
It works with all plug-in hybrid and battery electric vehicles equipped with Type 1 or Type 2 charging ports, including popular models from Tesla, Volkswagen, BMW, and Hyundai .
Yes, installation by a certified electrician is required to ensure compliance with local electrical codes (e.g., NEC in the US, IEC in the EU). The charger requires a 3-phase 380V power supply and proper grounding .
With IP65 waterproof and UV protection, it operates reliably in rain, snow, and intense sunlight. The operating temperature range of -40℃ to +65℃ makes it suitable for harsh climates worldwide .
While the maximum output is 22kW, the charger supports power adjustment via the mobile app or control panel, allowing users to reduce power during peak electricity hours to lower costs .
