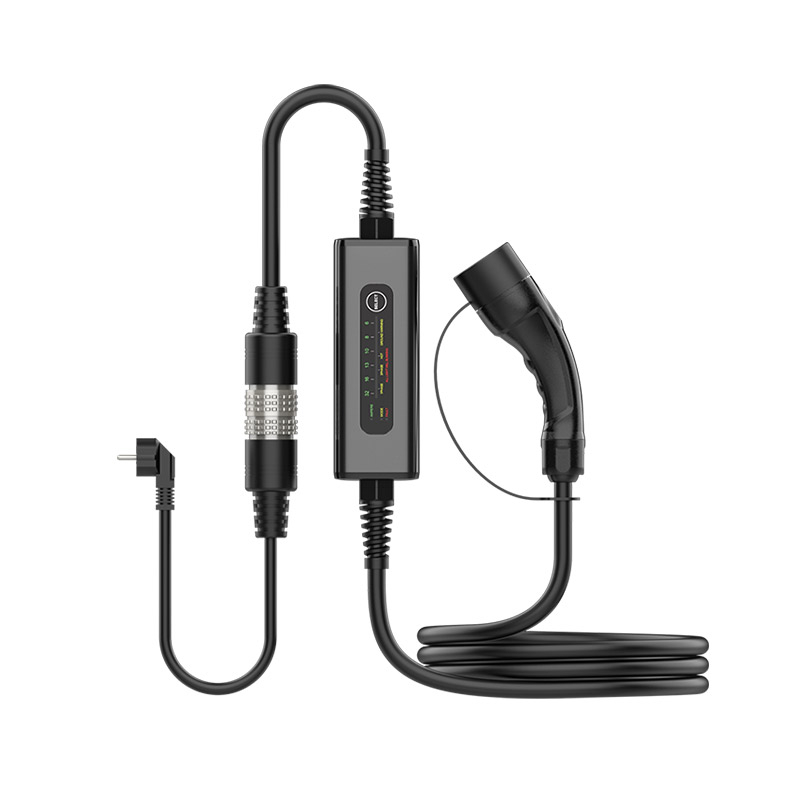

The Portable AC EV Charger is a versatile, high-power smart charging device engineered to meet the needs of diverse EV users—from individual owners to commercial fleet managers. Unlike standard chargers, it offers four input/output power ratings: 3.5kW/16A, 7kW/32A, 11kW/16A, and 22kW/32A, allowing it to charge both small EVs (e.g., compact cars) and large-capacity EVs (e.g., SUVs or vans). It also supports two voltage ranges: 220-240V (50Hz/60Hz) for residential use and 280-400V (50Hz/60Hz) for commercial or industrial grids, making it compatible with power systems across Europe, Asia, and North America.
| Quantity: | |
|---|---|
Featuring a Type 1 plug and a 23 feet (7m) durable cable, the charger ensures easy connection to most EVs. It comes in two compact dimension options: 210×90×78 mm (H×W×D) and 210×95×80 mm (H×W×D)—the smaller size for tight spaces (e.g., small garages) and the larger size for enhanced heat dissipation (ideal for high-power, long-duration charging). With an IP65 rating, it is dust-proof and water-resistant, while its operating temperature range of -25℃ to +50℃ and storage range of -30℃ to +70℃ ensure reliability in extreme weather. Like other premium chargers, it supports Bluetooth and Wi-Fi connectivity, as well as OTA updates via web portal, keeping it up-to-date with the latest technology.
The charger’s four power options—3.5kW/16A, 7kW/32A, 11kW/16A, and 22kW/32A—make it a one-stop solution for different EV battery capacities. For example, the 3.5kW/16A mode is perfect for overnight home charging (e.g., for a 40kWh battery, it takes ~11 hours), while the 22kW/32A mode cuts charging time for large batteries (e.g., a 80kWh battery takes ~3.6 hours). This adaptability eliminates the need to buy multiple chargers for different EVs.
Unlike chargers limited to 220-240V, this model supports 280-400V (three-phase power) for commercial use. This means it can be connected to industrial grids (e.g., in factories or commercial parking lots) to deliver high-power charging, making it suitable for commercial fleets that require fast, frequent charging. It also works with standard 220-240V residential outlets, ensuring versatility across use cases.
The two dimension options address different installation needs: the 210×90×78 mm size is ultra-compact, fitting in narrow garages or small storage areas; the 210×95×80 mm size has a larger heat dissipation area, which is ideal for long-duration high-power charging (e.g., 22kW mode for 4+ hours). Both sizes support wall or pedestal mounting, giving users flexibility in setup.
For commercial users, the Easy Charge Cloud platform is a key advantage. It allows fleet managers to track charging status for multiple chargers, monitor energy consumption per vehicle, and generate usage reports—data that helps optimize charging schedules and reduce operational costs. User authentication via the Easy Charge APP also prevents unauthorized use, ensuring the charger is only used by company vehicles.
Like its LED counterpart, this charger includes overcurrent, overvoltage, undervoltage, and surge protection to safeguard EVs and the grid. It is certified by CE, UL, and CCC, meeting global safety standards. The IP65 rating and wide temperature range further ensure it can withstand daily wear and tear, making it a long-term investment (backed by a 24-month warranty).
Businesses with medium-to-large EV fleets (e.g., 10+ delivery trucks, ride-hailing cars, or corporate SUVs) benefit most from this charger. The 22kW/32A mode enables fast charging for large batteries, while the 280-400V compatibility works with commercial three-phase grids. Fleet managers can use the Easy Charge Cloud to schedule charging during non-peak hours (reducing electricity costs) and track which vehicles are charged, streamlining operations.
For users who travel across regions with different power grids (e.g., from a 220V home in France to a 380V commercial site in Germany), the charger’s wide voltage range (220-240V to 280-400V) ensures seamless compatibility. It eliminates the need to carry multiple chargers, making cross-border road trips or business travel hassle-free.
Shopping malls, hotels, or office buildings can use this charger as a temporary charging solution for customers or employees. The dual-size options allow installation in tight parking spaces, while the 7m cable accommodates different parking positions. The LED status indicator helps users quickly identify available chargers, enhancing customer experience.
Auto repair shops or EV service centers can use this charger to test or charge EVs during maintenance. The multiple power modes let technicians match the charging speed to the vehicle’s needs (e.g., slow charging for battery diagnostics, fast charging for post-repair testing). The OTA update feature also ensures the charger remains compatible with new EV models, supporting long-term service operations.
Product Information
Charging mode | Smart charger |
Input/output power rating and current | 3.5kW/16A, 7kW/32A, 11kW/16A; 22kW/32A |
Input/output voltage | 220-240V, 50Hz/60Hz; 280-400V, 50Hz/60Hz |
Network type | TT; TN |
Connector type | Type 1 plug, 23 feet(7m) |
Protection | Overcurrent, overvoltage, undervoltage, integrated surge protection |
General Characteristics
IP and IK rating | IP65 | |
Operating altitude | 6562 feet(2000m) | |
Operating temperature range | -25℃ to+50℃ | |
Storage temperature range | -30℃ to +70℃ | |
Mounting | Wall or on a pedestal | |
Dimensions(H×W×D) | 210×90×78 mm | 210×95×80 mm |
User Interface
Status indication | LED |
User interface | Easy Charge APP; Easy Charge Cloud |
Connectivity | Bluetooth, Wi-Fi |
User authentication | APP |
Software Update | OTA updates via web portal |
Certification and Standards
Safety and compliance | CE、UL、CCC |
Warranty | 24 months, warranty extension possible |
