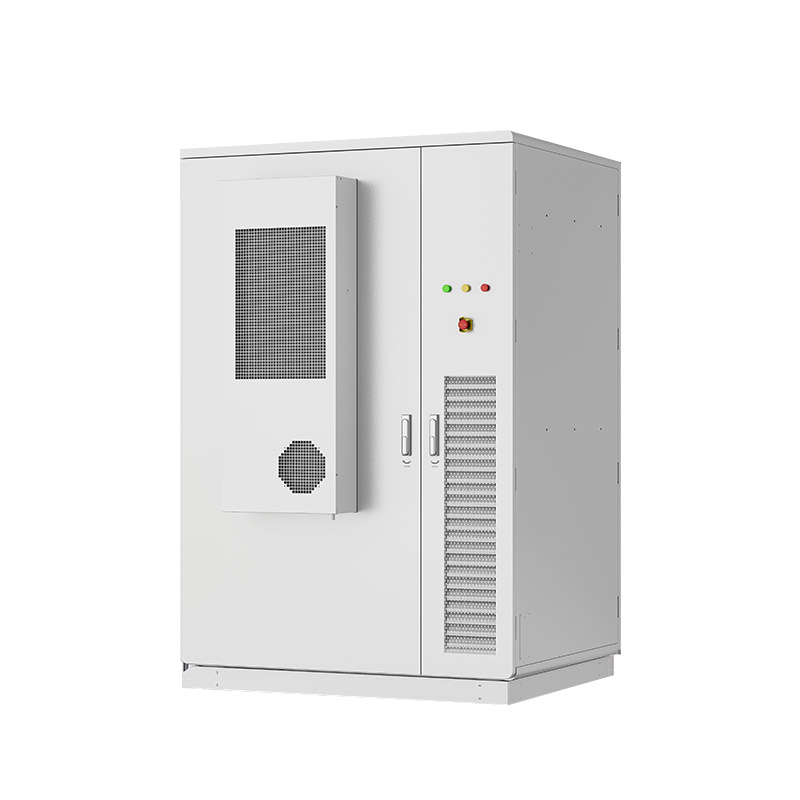

Our 100 KW×215 KWh Air-cooled Energy Storage Cabinet is a high-performance energy storage solution designed for industrial and commercial power applications, featuring stable output, efficient heat dissipation and intelligent remote management. Adopting advanced 3.2V/280Ah lithium battery cells and 1P240S grouping method, it achieves a rated output power of 100kW and a large energy storage capacity of 215KWh, perfectly matching the 230/400VAC 3P+N+PE grid voltage standard. With an integrated air-cooled heat dissipation design, it avoids the complex maintenance of water-cooled systems, reducing daily operating costs; the cloud data monitoring function realizes real-time data viewing, remote parameter setting and accurate fault location. Certified with IP54 protection grade, this energy storage cabinet is robust and adaptable to various industrial and commercial working environments, and is widely used in grid-connected energy storage, peak-shaving and valley-filling of industrial parks, and emergency power supply of commercial complexes.
Equipped with 3.2V/280Ah high-quality battery cells and designed with 1P240S grouping, the cabinet achieves a rated DC voltage of 768V, a maximum charge/discharge current of 176A, a rated output power of 100kW and a storage capacity of 215KWh, meeting the large power demand of industrial and commercial continuous operation.
The integrated air-cooled design ensures efficient heat dissipation of the battery pack during high-power charge and discharge, maintaining the stable operating temperature of the internal components, with no need for additional water pipe laying and water quality management, greatly reducing the later maintenance cost and difficulty.
Support cloud platform data viewing, users can real-time monitor the charge/discharge status, voltage, current and remaining capacity of the energy storage cabinet; the streamlined operation interface enables remote setting of functional parameters, and the system can accurately locate and eliminate faults, improving the efficiency of power management and maintenance.
Adapt to the mainstream 230/400VAC 3P+N+PE rated grid voltage, with a maximum charge/discharge current of 176A, it can be seamlessly connected to the industrial and commercial power grid, realizing flexible grid-connected and off-grid operation, and meeting the peak-shaving and valley-filling and emergency power supply needs of different power grids.
With IP54 dustproof and waterproof protection grade, it effectively resists the intrusion of dust and splashing water in industrial and commercial environments; the cabinet weighs 2500kg with a solid structure (1450×1380×2260mm W×D×H), ensuring stable operation in complex on-site conditions.
Solution: Aiming at the high power consumption and peak-valley electricity price difference of industrial parks, the energy storage cabinet realizes peak-shaving and valley-filling by charging at low electricity price in the valley period and discharging at high electricity price in the peak period, reducing the electricity cost of enterprises in the park; at the same time, it serves as an emergency power supply to ensure the continuous operation of key production equipment and avoid production losses caused by power outages.
Solution: For shopping malls, hotels and other commercial complexes, the cabinet provides stable backup power supply, ensuring the normal operation of elevators, lighting, air conditioning and other important equipment in case of sudden power grid failure, improving the service quality and safety of the complex; the cloud intelligent management function enables the property to realize remote monitoring and parameter adjustment, saving human management costs.
Solution: Adapt to the 230/400VAC 3P+N+PE grid voltage standard, the cabinet can be connected to the public power grid in large quantities, participating in the grid peak regulation and frequency modulation, improving the stability and reliability of the power grid; the air-cooled design is suitable for both indoor and outdoor installation of energy storage stations, with low maintenance requirements and high operational efficiency.
Project | Parameter |
Cell Specifications | 3.2V,280Ah |
Rated Output Power | 100kW |
Grouping Method | 1P240S |
Rated Voltage | 768VDC |
Rated Grid Voltage | 230/400VAC,3P+N+PE |
Maximum Charge/Discharge Current | 176A |
Weight | 2500kg |
Dimensions (W×D×H) | 1450×1380×2260mm |
Protection Rating | IP54 |
Energy Storage Capacity | 215KWh |
We offer one-stop custom services for the 100 KW×215 KWh Air-cooled Energy Storage Cabinet based on industrial and commercial project requirements. For grid-connected energy storage projects, we provide custom grid-connected debugging and matching of energy storage system accessories to adapt to different regional power grid standards; for industrial parks and commercial complexes, we can customize the charge/discharge strategy and cloud data monitoring interface according to the actual power consumption characteristics of customers, and provide personalized energy management solutions. In addition, our technical team provides on-site installation and commissioning, and long-term after-sales maintenance and battery replacement services for the energy storage cabinet.
Are you looking for a high-efficiency, low-maintenance air-cooled energy storage cabinet for your industrial park, commercial complex or grid-connected energy storage project? Send us your inquiry with detailed project needs, including installation scale, application scenarios and grid connection requirements, whether it is a single cabinet purchase or a large-scale energy storage system construction. Our professional energy storage team will provide you with a customized overall solution and a detailed quote within 24 hours, and also offer free on-site survey and technical scheme design services. Choose our energy storage cabinet to realize efficient and economical power management for your business!
